    Model Number : JC3224B035N
    Price : ¥65/pcs
    Payment Terms : L/C, T/T
    Supply Ability : 5000pcs/day
    Delivery Time : 28day
    • Product Details
    • Company Profile

    240x320 Parallel LCD Display 320x240 Tft Display Screen 3.5 Inch Tft Display

    3.5 inch Without Touch 3.5" 240*320 320*240 Tft display Screen 3.5 inch LCD TFT Module Factory Orginal

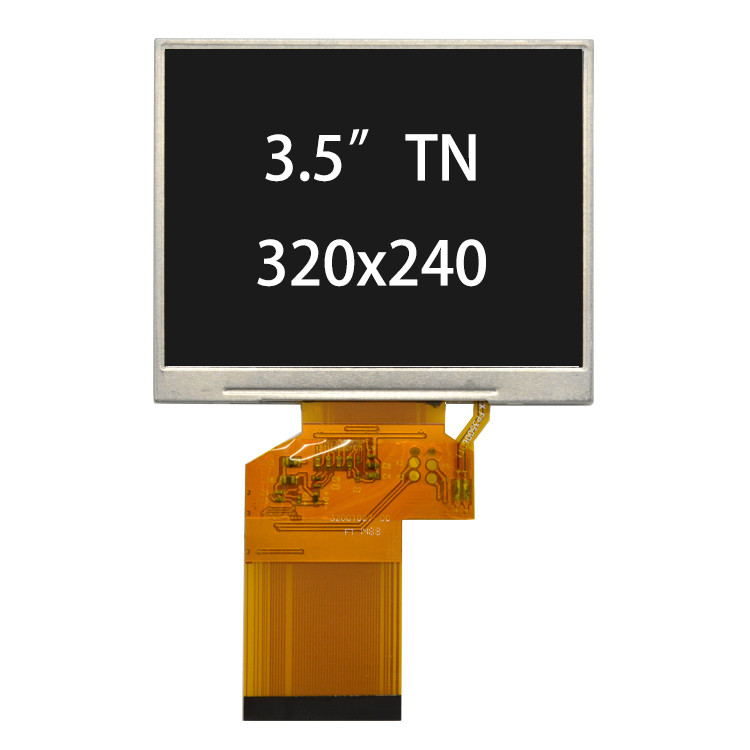

    3.5 inch color TFT-LCD module display, 320x240 dots, video & VGA driver board, can be used in any embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful video.

    Features

    ● 320x240resolution
    Video&VGA driver board
    Viewing Angle 40°/60°/60°/60°(L/R/U/D)
    Operating temperature -20℃~70℃
    Optional touch screen
    Optional 3.5 inch 4-wire resistive touch panel with USB driver board and cable
    Optional capacitive touch panel with USB controller board and cable


    ItemSpecification
    Part No.3.5'' tft lcd module 320x240 dots
    Outline Dimension(mm)77x64
    Active Area(mm)70.08x52.56
    Resolution(dots)320*RGB*240
    Operating temperature(°C)-20~+70
    Storage temperature(°C)-30~+80
    Number of color16.7M color
    Black light6-LED White
    Display modeTFT Transmissive Normal black
    Surface treatmentAntiglare
    View directionALL
    Weight(g)TBD
    Power Consumption(w)Panel0.226(Typ.)
    B/L system1.674(Typ.)
    InterfaceRGB
    Module lifetime(Hours)50,000-100,000
