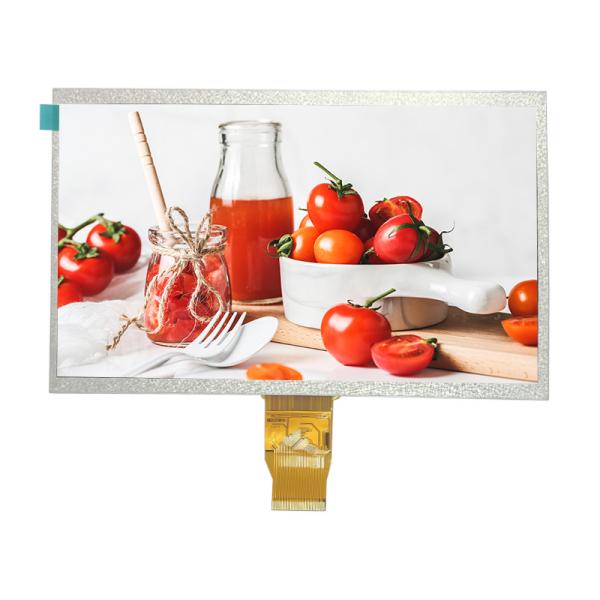

    350 Bright 7 Inch Resistive Touch Screen 480x800 7 Inch Tft Display Module 50PIN RGB

    Ask Lasest Price
    Model Number : JC8048B050R
    Price : ¥75/pcs
    Payment Terms : L/C, T/T
    Supply Ability : 5000pcs/day
    Delivery Time : 28day
    • Product Details
    • Company Profile

    350 Bright 7 Inch Resistive Touch Screen 480x800 7 Inch Tft Display Module 50PIN RGB

    7 inch Resistive touch 800xRGBx480 Driver 350 bright TFT lcd display module 50PIN RGB
    Introduction
    This standard 7.0 inch LCD module is with standard PCAP, the performance is very good.
    Type: a-si TFT, transmissive, normally black, IPS
    Resolution: 800*480
    Brightness: 520 nits
    LCM+CTP Outline Dimension: 190.08(H) x 121.92(V) x5.13(D) mm
    Active Area: 153.84(W) * 85.63 (H) mm
    Interface: LVDS
    Viewing Angle: 70 60 70 70 Deg
    Color Depth: 16.7M
    Input Voltage: 3.3V
    Backlight Voltage: 9.6V
    Backlight Type: 30 LEDs, 200 mA
    Surface Treatment: anti-glare
    Driver IC: ILI6122
    Touchscreen: capacitive touch/resistive touch

    SPEC
    Size
    7.0 inch diagonal
    LCD Type
    a-si TFT, Transmissive, Normally white, TN
    Resolution
    800*480
    Active Area
    153.84 (W) * 85.63 (H) mm
    Interface
    TTL RGB 24-bits
    Outline Dimension
    190.08(H) x 121.92(V) x5.13(D) mm
    Brightness
    300 nits
    Pixel Arrangement
    RGB-stripe
    Contrast
    500:1
    Pixel Pitch
    0.0641 x 0.1784
    Driver IC
    ILI6122
    Backlight Type
    30 LEDs, 200 mA, 9.6V
    Viewing Angle
    70 60 70 70 Deg
    Input Voltage
    3.3V (typ.)
    Transmittance
    6.03%
    Touch Screen
    RTP
    Working Temp
    -20/+60℃
    Surface Hardness
    ≥6H
    Storage Temp
    -30/+70℃
    Surface Treatment
    Anti-glare
    CTP Touch Input
    5/10 points
    Customization
    interface/FPC/TP/brightness
