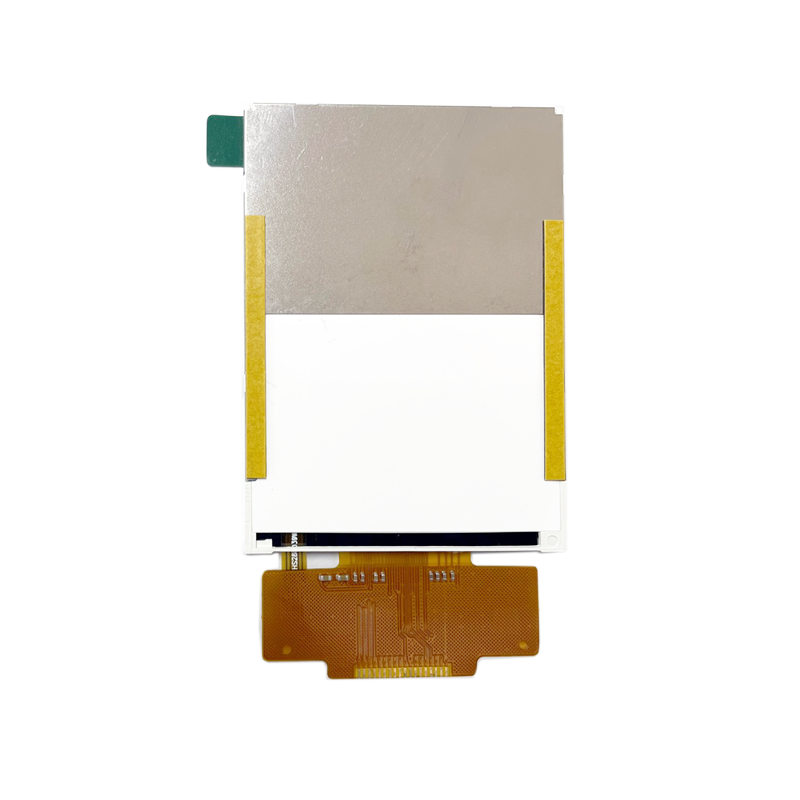

    4 Wire SPI LCD Display 240x320 2.8 Inch Lcd Display ILI9341V 65K Color

    Ask Lasest Price
    Model Number : JC2432A028R
    Price : ¥39/pcs
    Payment Terms : L/C, T/T
    Supply Ability : 5000pcs/day
    Delivery Time : 28day
    • Product Details
    • Company Profile

    4 Wire SPI LCD Display 240x320 2.8 Inch Lcd Display ILI9341V 65K Color

    2.8 inch Resistance Touch 2.8" 240*320 320*240 ILI9341V Display Screen 2.8 inch SPI LCD TFT Module Tft display

    Product Description

    • 2.8 inch 2.8”CTC LCD ILI9341V TFT LCD Display Screen.
    • DC 3.3V 2.8 inch TFT LCD Display Module ILI9341V Driver 4 Wire SPI Interface 240x320.
    • Industrial quality.
    • Long-term stable supply.
    • With a wide range of standard and customized LCD and TFT modules, BACKLIGHT. We offer to customers the solutions and technologies best suited for the applications.
    • Our products have been applied in a wide range of industries including financial devices, energy meter equipment, check-in machines, fiscal processors, portable devices, intelligent home solutions, medical facilities and industrial equipment.

    Product Parameters

    NameParameter
    SKUJC2432A028R
    Display ColorRGB 65K color
    Touch modeResistance touch
    Screen Size2.8(inch)
    TypeTFT
    Driver ICILI9341V
    Resolution240*320 (Pixel)
    Module Interface4-wire SPI
    Active Area57.60(L)X43.20(W)MM
    External dimension69.20(L)X50.00(W)X2.30(H)MM
    Operating Temperature-20℃~60℃
    Storage Temperature-30℃~70℃
    Operating Voltage3.3V
    Visual angle12:00 o'clock
    Product Weight(Package containing)20(g)

    Interface Definition


    NumberPin LabelPin Description
    1GNDPower ground
    2RESETLCD reset signal, low level reset
    3SCLClock signal
    4D/CInstruction Data Selection L: Instruction H: Data
    5CSLCD chip select signal, active low
    6SDAControl data transmission
    7SDOControl data output
    8GNDPower ground
    9VCC2.8~3.3V power input
    10LEDABacklight LED positive extreme
    11K1Backlight LED negative extreme
    12K2Backlight LED negative extreme
    13K3Backlight LED negative extreme
    14K4Backlight LED negative extreme
    15XLTouch x axis
    16YUTouch y axis
    17XRTouch x axis
    18YDTouch y axis
