【Product Parameters】
▲.Size: 5.0 (inch)
▲. Resolution: 800 ×480 (dots)
▲. SKU: JC8048H050C
▲. Touch: Without touch
▲.Dimensions: 122.1*99.39 (mm)
▲.Weight: 220 (g)
【Product description】

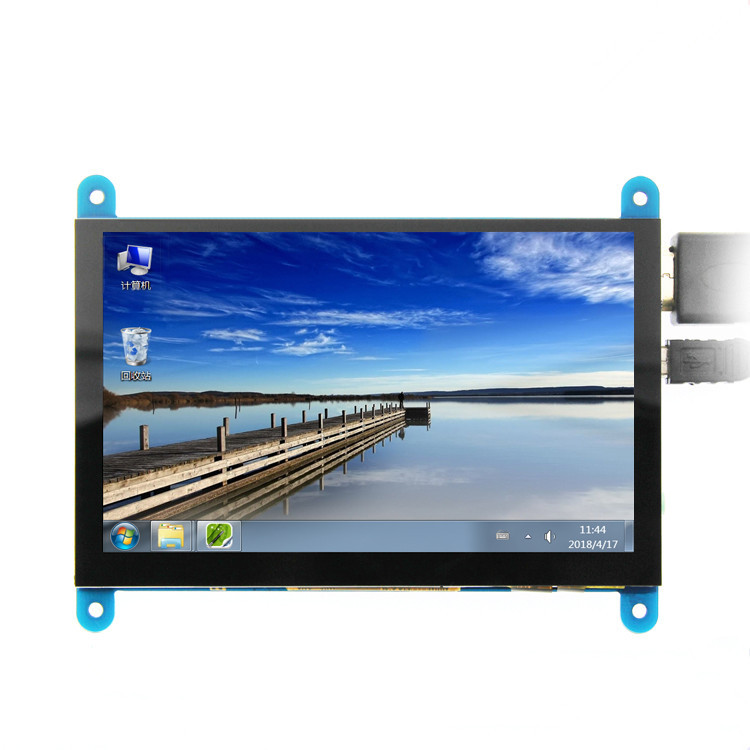

▲.5inch standard display, 800 × 480 Hardware resolution.
▲.Capacitive touch screen, maximum support 5 point touch.
▲.Support backlight control alone, the backlight can be turned off
to save power.
▲. Support Raspberry Pi, BB Black, Banana Pi and other mainstream
mini PC.
▲.Can be used as general-purpose-use HDMI monitor, for example:
connect with a computer HDMI as the sub-display .
▲.Used as a raspberry pi display that supports Raspbian, Ubuntu,
Kali-Linux, Kodi, win10 IOT, single-touch, free drive.
▲.Work as a PC monitor, support win7, win8, win10 system 5 point
touch (XP and older version system: single-point touch),
free drive.
▲.CE, RoHS certification.
How to use with Raspbian/Ubuntu Mate/Win10 IoT Core System
Step 1, Install Raspbian official image
1.Download the latest image from the official download.
2.Install the system according to the official tutorial steps.
Step 2, modify the “config.txt”
After the programming of Step1 is completed, open the config.txt
file of TF card root directory and
add the following code at the end of the file, save and eject Micro
SD Card safely:max_usb_current=1
hdmi_force_hotplug=1
config_hdmi_boost=7
hdmi_group=2
hdmi_mode=87
hdmi_drive=1
display_rotate=0
hdmi_cvt 800 480 60 6 0 0 0
Step 3, Drive the 5inch HDMI JC8048H050N with the Raspberry Pi
Insert the TF Card to Raspberry Pi, connect the Raspberry Pi and
LCD by HDMI cable;
connect USB cable to one of the four USB ports of Raspberry Pi,and
connect the other end of the USB cable to the USB port of the LCD;
then supply power to Raspberry Pi; after that if the display and
touch both are OK,it means drive successfully (please use the full
2A for power supply).
How to use as PC monitor
Connect the computer HDMI output signal to the LCD HDMI interface
by using the HDMI cable
Connect the LCD's USB Touch interface (Either of the two MicroUSB)
to the USB port of the device
If there are several monitors, please unplug other monitor
connectors first, and use LCD as the only monitor for testing
