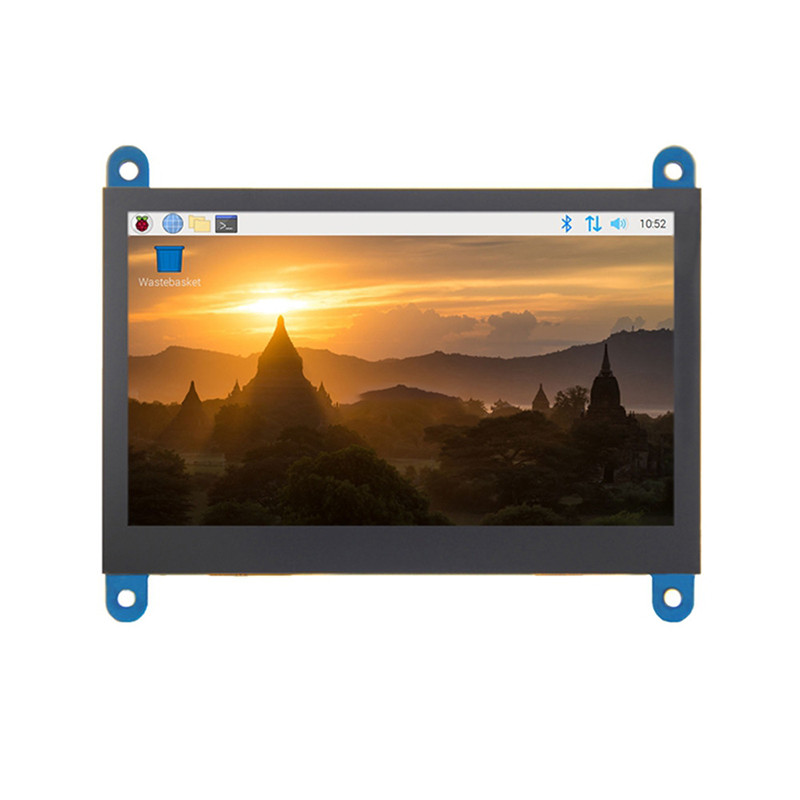

    HDMI Smart LCD Module 800x480 4.3 Inch Capacitive Touch Screen

    Ask Lasest Price
    Model Number : JC8048H043C
    Price : ¥160/PCS
    Payment Terms : L/C, T/T
    Supply Ability : 5000PCS/day
    Delivery Time : 28day
    • Product Details
    • Company Profile

    HDMI Smart LCD Module 800x480 4.3 Inch Capacitive Touch Screen

    Product Description

    • 4.3"standard display, 800x480 resolution,maximum HDMI resolution 1920X1080 is supported
    • Capacitive touch screen, support 5 point touch maximum
    • Built-in OSD menu adjustment function (adjustable Contrast/ Brightness/Saturation, etc.)
    • It is compatible with mainstream mini PC such as Raspberry Pi, BB Black, Banana Pi
    • It can also be used as a general-purpose HDMI display, connecting computers, TV boxes, Microsoft Xbox360, SONY PS4, Nintendo Switch and so on
    • Used as a Raspberry Pi display that supports Raspbian, Ubuntu, Kodi, Win10 IOT, single-touch, free drive
    • Work as a PC monitor, support Win7, Win8, Win10 system 5 point touch (XP and older version system: single-point touch), free drive
    • Support HDMI audio output
    • CE, RoHS certification

    Product Parameters

    • Size: 4.3 (inch)
    • SKU: JC8048H043C
    • Resolution: 800 × 480 (dots)
    • Touch: 5 point capacitive touch
    • Audio output: support
    • Dimensions: 106.00*85.31(mm)
    • Package Size:
    • Rough Weight(Package containing): 219 (g)
    • Power Dissipation:
    • How to use with Raspbian/Ubuntu Mate/Win10 IoT Core System

      Step 1, Install Raspbian official image

    • Download the latest image from the official download.
    • Install the system according to the official tutorial steps.
    • How to use as PC monitor

    • Connect the computer HDMI output signal to the LCD HDMI interface by using the HDMI cable
    • Connect the LCD's USB Touch interface (Either of the two MicroUSB) to the USB port of the device
    • If there are several monitors, please unplug other monitor connectors first, and use LCD as the only monitor for testing.
    • How to rotate the display direction

    • Method 1,If the driver is not installed, execute the following command (Raspberry Pi needs to connected to the Internet):
    •  sudo rm -rf LCD-show git clone https://github.com/goodtft/LCD-show

        chmod -R 755 LCD-show  cd LCD-show/ sudo ./MPI5001-show
      After execution, the driver will be installed. The system will automatically restart, and the display screen will rotate 90 degrees to display and touch normally.
      ( ' XXX-show ' can be changed to the corresponding driver, and ' 90 ' can be changed to 0, 90, 180 and 270, respectively representing rotation angles of 0 degrees, 90 degrees, 180 degrees, 270 degrees)
    • Method 2,If the driver is already installed, execute the following command:
    •  cd LCD-show/ sudo ./rotate.sh 90
      After execution, the system will automatically restart, and the display screen will rotate 90 degrees to display and touch normally.
      ( ' 90 ' can be changed to 0, 90, 180 and 270, respectively representing rotation angles of 0 degrees, 90 degrees, 180 degrees, 270 degrees)
      If the rotate.sh prompt cannot be found, use Method 1 to install the latest drivers
       hdmi_force_edid_audio=1 max_usb_current=1 hdmi_force_hotplug=1
      config_hdmi_boost=7 hdmi_group=2 hdmi_mode=87 hdmi_drive=2 hdmi_cvt
      800 480 60 6 0 0 0

      Step 3, Drive the 5inch HDMI Display-B with the Raspberry Pi

      Insert the TF Card to Raspberry Pi, connect the Raspberry Pi and
      LCD by HDMI cable; connect USB cable to one of the four USB ports
      of Raspberry Pi, and connect the other end of the USB cable to the
      USB port of the LCD; then supply power to Raspberry Pi; after that
      if the display and touch both are OK, it means drive successfully
      (please use the full 2A for power supply).

      Step 2, modify the “config.txt”

      After the programming of Step1 is completed, open the config.txt
      file of TF card root directory and add the following code at the
      end of the file, save and eject Micro SD Card safely:
    • HDMI Smart LCD Module 800x480 4.3 Inch Capacitive Touch ScreenHDMI Smart LCD Module 800x480 4.3 Inch Capacitive Touch ScreenHDMI Smart LCD Module 800x480 4.3 Inch Capacitive Touch Screen
