7.0 inch Capacitive Touch Panel 1024*600 MIPI IPS TFT DSI Multi-Touch LCD Module Display Monitor Screen for Raspberry Pi

Description

This is a 7-inch DSI screen with a resolution of1024*600 and a display area of 153.84*85.63mm. It supports direct output of Raspberry Pi MIPI DSI interface, plug and play, no need to install drivers. The 7 inch DIS display also supports multiple systems Ubuntu, Kali, etc. For example, it has a backlight brightness adjustment button, supports PWM backlight brightness adjustment, and adapts to different use environments.

Feature

• 1024x600 resolution capacitive touch display

• Raspberry Pi MIPI DSI interface direct output, plug and play, driver free

• Support official system Raspbian, web page 2-finger zoom;

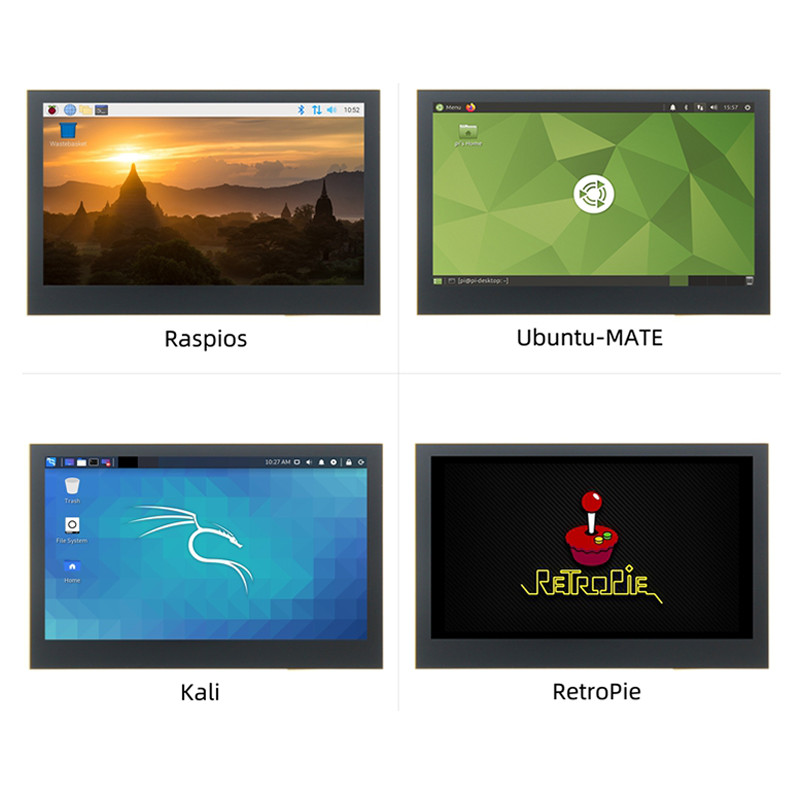

• Support Ubuntu/Kali/Win10 IoT, single touch;Support Retropie

• Built-in backlight brightness
  adjustment button, supports PWM backlight brightness adjustment, adapts
  to different use environments

Specification

• Size:7 inch

• Resolution:1024*600

• LCD Interface Type: RGB888 Port

• Module Interface Type: MIPI DSI

• Refresh Rate: 60Hz

• Touch Type: Capacitive Touch Screen

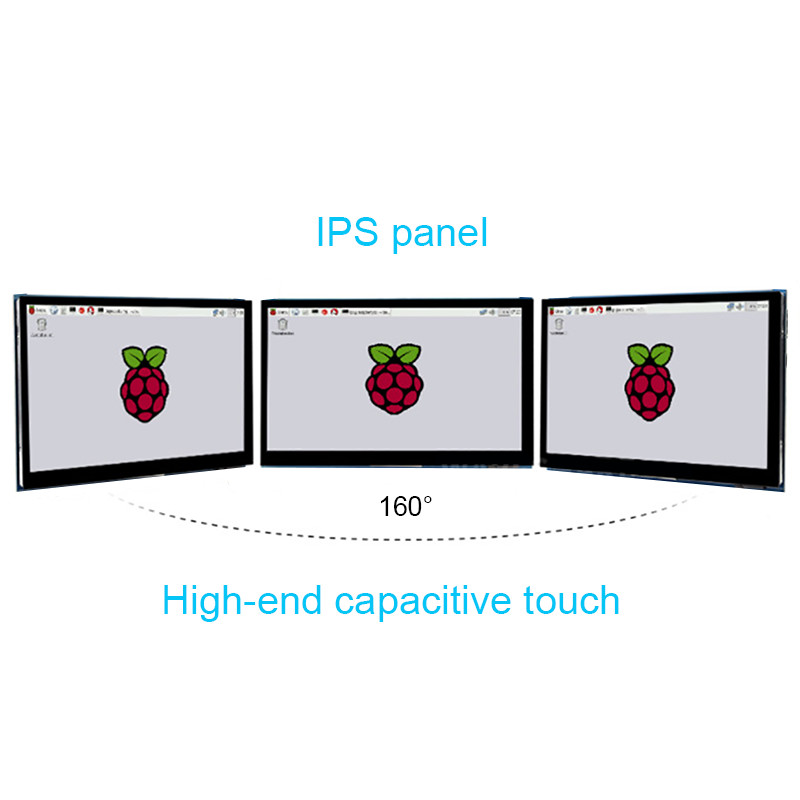

• View Angle: IPS Full Viewing Angle

• Active Area: 153.84*85.63mm

• Operating Voltage: 3.3v

• Maximum operating current: 510mA

• Maximum Brightness: 300cd/m²

• Operating temperature: -20℃-70℃

• External dimension:164.9*102*12.25mm

• Package Size:212*149*54mm

• Weight:236g

Package List

• 1x 7 inch Touch DSI Display

• 1x FFC-1.0-15P-10cm

• 1x FFC-1.0-15P-5cm

• 4x Screw(M2.5*4mm)

• 4x Screw(M2.5*12mm)

• 4x Copper pillar(M2.5)

• 2x bracket
