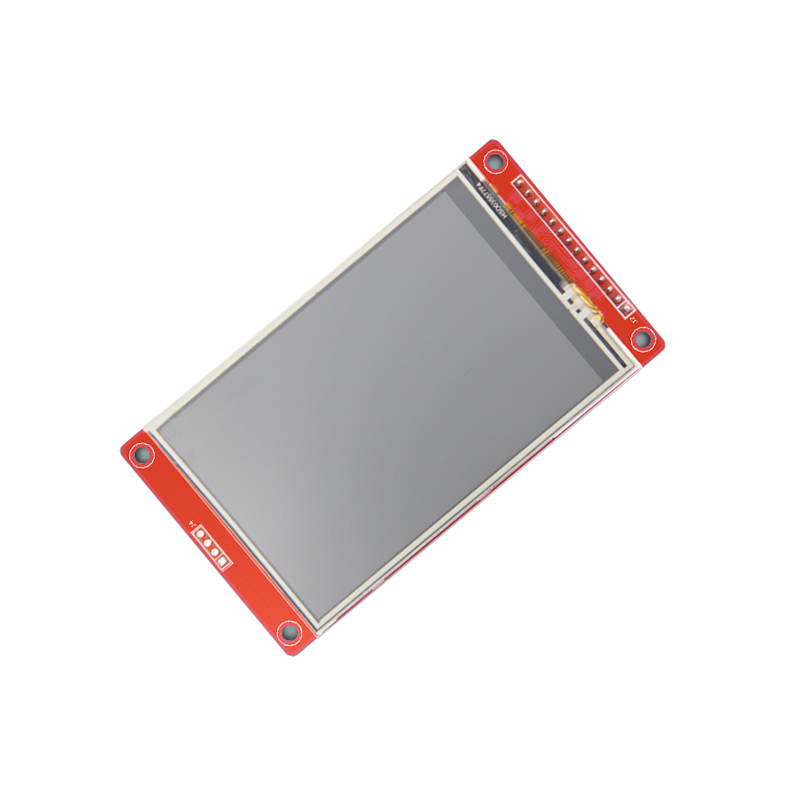

3.5 inch Resistive touch SPI LCD TFT Module TFT display Module 3.5 Inch 480*320 SPI Panel Driver IC ILI9488 Support

Provide 51 MCU, stm32 MCU, Arduino sample program, copy the download link to the browser to download the information:

Product Description

The LCD module hardware circuit comprises two parts: an LCD display control circuit and a backlight control circuit.

The LCD display control circuit is used to control the pins of the LCD, including control pins and data transfer pins.

The touch screen control circuit can control touch screen touch corresponding and touch coordinate reading (touch screen optional).

The backlight control circuit is used to control the backlight to be on and off. Of course, if the backlight is not required to be controlled, the backlight control pin can be directly connected to the 3.3V power supply without using the circuit.

The LCD module uses a 4-wire SPI communication method with a driver IC of ILI9488 with a resolution of 320x480 and a touch function (optional). The module includes an LCD display, backlight control circuitry, and touch screen control circuitry.

● 3.5-inch color screen,support 65K color display,display rich colors ·

● 320X480 resolution with optional touch function·

● Using the SPI serial bus, it only takes a few IOs to illuminate the display·

● Easy to expand the experiment with SD card slot·

● Military-grade process standards, long-term stable work ·

● Provide underlying driver technical support·

Product Parameters

Interface Definition

Jingcai lntelligent is a high-speed growth technology enterprise integrating R&D, production and sales the company has always focused on the supply of "human-computer interactive display solutions" and"USART-HMl Display Module";, the product size covers 1.28"~21.5",the independently developed interface development software Guition , can help users quickly develop Ul interfaces and realize human-computer interactive functions.

Jingcai intelligent's serial port smart screen is widely used in different products in various industriessuch as 3D printers, air detection equipment, medical equipment, massage equipment, medical beauty equipment, financial equipment, audio equipment, commercial kitchens,smart homes,smart warehousing, automotive instruments,new energy vehicle charging piles, instruments, artificial intelligence,home appliances,industrial automation equipment, handheld equipment, security

Jingcai intelligent has a professional R&D team and service team, which not only meets the design and development of conventional products, but also provides customers with personalized customized services: customization in terms ofstructure, Ul, software, hardware, etc., in accordance with customers'actual needs!
