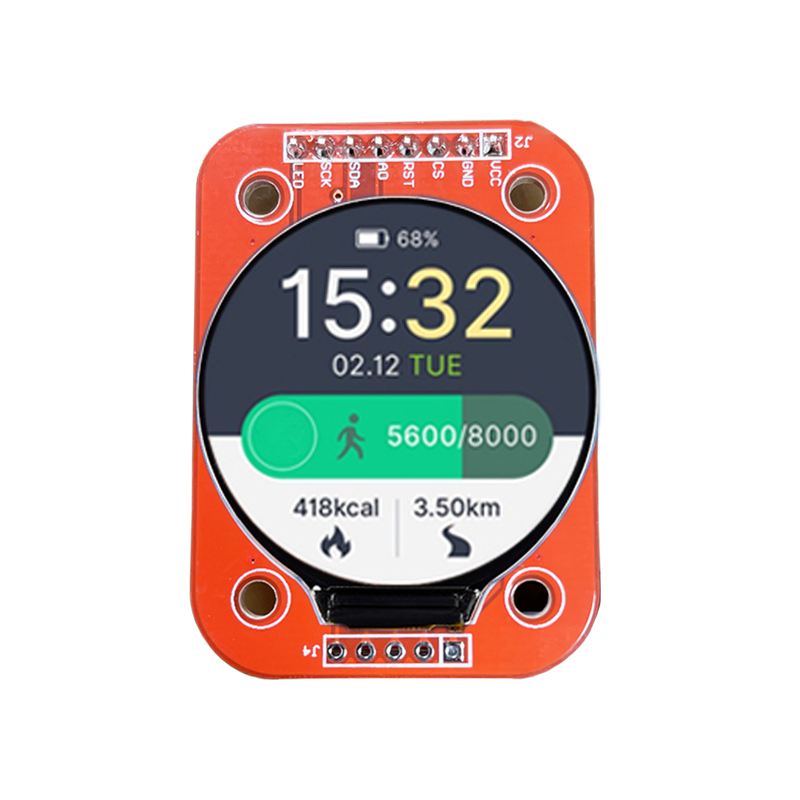

    1.28 Inch SPI Display Module TFT LCD Display Module GC9A01 Round Display 240x240

    1.28 inch TFT LCD Display Module 1.28”Round Full IPS 240*240 GC9A01 Driver 4 Wire SPI Interface 240x240 Resolution

    Provide 51 MCU, stm32 MCU, copy the download link to the browser to download the information:

    Product Description

    The GC9A01 controller supports a maximum resolution of 132*162 and a 48114-byte GRAM. It also supports 8-bit, 9-bit, 16-bit, and 18-bit parallel port data buses. It also supports 3-wire and 4-wire SPI serial ports. Since parallel control requires a large number of IO ports, the most common one is SPI serial port control. The GC9A01 also supports 65K, 262K RGB color display, display color is very rich, while supporting rotating display and scroll display and video playback, display in a variety of ways.


    ● 1.28-inch color screen,support 65K color display,display rich colors ·

    ● 240X240 resolution, clear display·

    IPS glass, full view display ·

    Round display screen, good display effect ·

    ● Using the SPI serial bus, it only takes a few IOs to illuminate the display·

    ● Easy to expand the experiment with SD card slot·

    ● Military-grade process standards, long-term stable work ·

    ● Provide underlying driver technical support·

    Product Parameters

    NameParameter
    SKUJC2424S012N
    Display ColorRGB 65K color
    Touch modeWithout touch
    Screen Size1.28(inch)
    TypeTFT
    Driver ICGC9A01
    Resolution240*240 (Pixel)
    Module Interface4-wire SPI
    Active Area32.4(L)X32.4(W)MM
    External dimension50.0(L)X36.0(W)X3.1(H)MM
    Operating Temperature-20℃~60℃
    Storage Temperature-30℃~70℃
    Operating Voltage3.3V
    Visual angleIPS Full view
    Product Weight(Package containing)13(g)

    Interface Definition


    NumberPin LabelPin Description
    1VCC5.0 power input
    2GNDPower ground
    3CSLCD chip select signal, active low
    4RESTLCD reset signal, low level reset
    5A0Control register selection
    6SDAControl data transmission
    7CLKClock signal
    8LEDConnected to 3.3V
