Human Machine Interface (HMI) solution combining an onboard processor and memory touch display with Editor software for HMI GUI project development.
Using the software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider etc.) and ASCII text based instructions for coding how components interact at display side.
HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX ,GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to display utilizing simple ASCII text based instructions.

The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage and SRAM compared with Basic Series and Enhanced Series. The audio, video and animation play functions enriches user’s project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move and Drag .etc.

Hardware Features

• - TJC8048X570_011CS-Y(7.0'' IPS RGB 65K capacitive touchscreen)

• - Onboard MCU 200MHz and up to 128MB for HMI project

• - Built-in RTC,EEPROM, 8 digital GPIOs (2 PWM capable)

• - 4 pins (+5V, TX, RX, GND) TTL serial interface

• - 300 nit Brightness with 1% interval adjustment

• - Audio interface

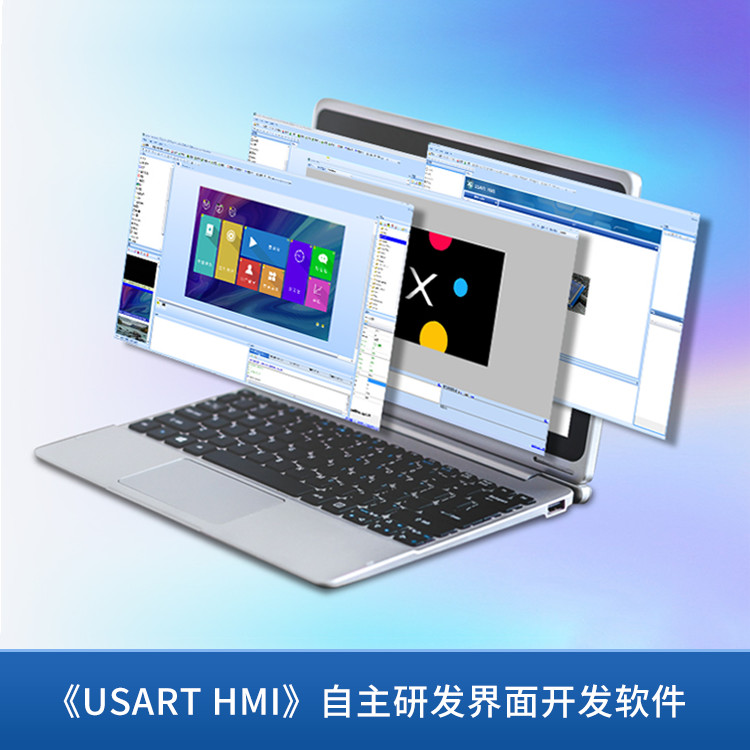

Jingcai lntelligent is a high-speed growth technology enterprise integrating R&D, production and sales the company has always focused on the supply of "human-computer interactive display solutions" and"USART-HMl Display Module";, the product size covers 1.28"~21.5",the independently developed interface development software Guition , can help users quickly develop Ul interfaces and realize human-computer interactive functions.

Jingcai intelligent's serial port smart screen is widely used in different products in various industriessuch as 3D printers, air detection equipment, medical equipment, massage equipment, medical beauty equipment, financial equipment, audio equipment, commercial kitchens,smart homes,smart warehousing, automotive instruments,new energy vehicle charging piles, instruments, artificial intelligence,home appliances,industrial automation equipment, handheld equipment, security

Jingcai intelligent has a professional R&D team and service team, which not only meets the design and development of conventional products, but also provides customers with personalized customized services: customization in terms ofstructure, Ul, software, hardware, etc., in accordance with customers'actual needs!
